Geotechnical laboratory testing in Brisbane forms a critical component of site characterisation, complementing field programs by providing precise measurements of soil and rock behaviour under controlled conditions. The region’s geology, dominated by residual soils derived from Neranleigh-Fernvale Beds metasediments, Brisbane Tuff, and Quaternary alluvium along the floodplains of the Brisbane River, demands careful sampling and testing to capture variability in strength, compressibility, and reactivity. Our NATA-accredited facility operates in strict accordance with AS 1289 and AS 4133 series standards, ensuring that results are defensible for design and regulatory submissions. Testing programs are directly integrated with data from our geotechnical investigation campaigns and targeted SPT (Standard Penetration Test) sampling to select representative specimens for advanced analysis.

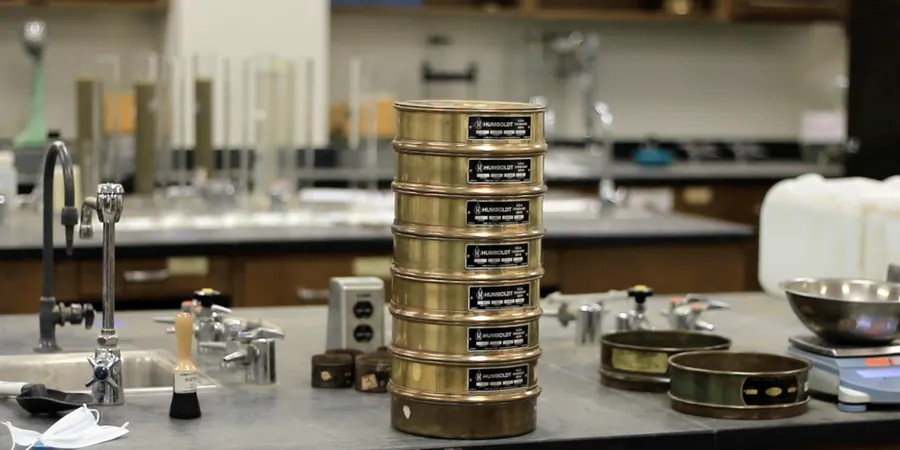

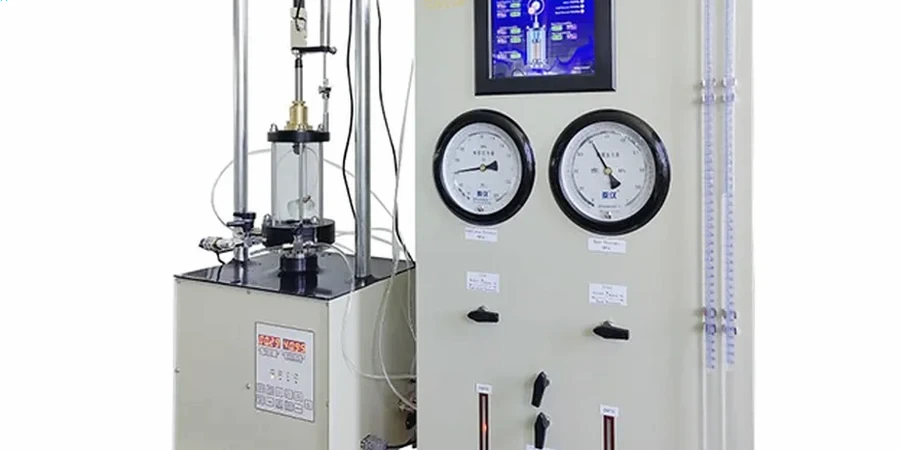

All laboratory procedures adhere to the methods prescribed by Australian Standards and relevant Queensland Department of Transport and Main Roads specifications. Classification testing—including Atterberg limits, particle size distribution by sieving and hydrometer, and linear shrinkage—is performed to AS 1289, establishing fundamental soil behaviour and reactivity class in accordance with AS 2870 for residential slab design. Strength and stiffness parameters are determined through unconsolidated undrained (UU) and consolidated undrained (CU) triaxial compression tests, direct shear tests, and one-dimensional consolidation testing using incremental loading frames. For reactive clay profiles common in Brisbane’s western suburbs, shrink-swell index tests and soil suction measurements provide essential inputs for footing design. Rock material characterisation follows AS 4133, covering uniaxial compressive strength, point load index, and slake durability, which are particularly relevant for excavations in the phyllite and quartzite formations of the inner north. These methodologies are closely coordinated with in-situ techniques such as the Ménard pressuremeter test (PMT) to calibrate stiffness parameters across the full stress range.
Typical projects in Brisbane that rely heavily on laboratory data include high-rise developments on the soft alluvial clays of the inner city, where consolidation testing quantifies settlement magnitude and rate under foundation loads, and infrastructure corridors through the reactive clay profiles of the southern growth corridors. Landslide risk assessments in the hilly terrain of the Gap and Mount Coot-tha areas require residual shear strength measurement using multistage direct shear or ring shear apparatus. Pavement design for industrial estates and logistics hubs depends on soaked California Bearing Ratio (CBR) values and repeated load triaxial testing to characterise subgrade performance under cyclic traffic loading. For projects where fill compaction is specified, laboratory moisture-density relationship testing (Standard and Modified Proctor) establishes target parameters that are then verified in the field using our field density test (sand cone method) services, ensuring compliance with the compaction requirements of AS 3798.
The laboratory workflow begins with sample receipt and logging in accordance with AS 1289.1.1, followed by specimen preparation using methods appropriate to the material type—trimming for cohesive soils, compaction for granular materials, and diamond coring for rock cores. Testing schedules are prioritised to align with project milestones, and all raw data is processed through validated spreadsheets and geotechnical software. Deliverables include a comprehensive factual report containing test data sheets, graphical plots of stress-strain and consolidation behaviour, and a summary table of derived parameters. Value is delivered through the seamless integration of laboratory results with field investigation data, enabling our engineers to develop robust ground models that reduce uncertainty in foundation design and earthworks specification. This unified approach, linking controlled laboratory measurement with field observations from plate load test (PLT) programs and field v
